Collect Response from a Slack Modal

Workflow
Universal
Beginner

This is a 'Workflow' template which means that it is a single standalone workflow.

Some workflow templates can be modified to work with other workflow templates - e.g. to convert a data sync between two services from uni-directional to bi-directional

Overview
Copy

The workflow is triggered by a Webhook trigger.

Once you have created a /slash-command in Slack, the workflow serves as the initial integration point that generates a Modal when the /slash-command is fired. This Modal is essentially a form that collects responses on submission.

These responses can then be stored in any database of your choice. In this template, we are using Google Sheets as a generic placeholder for any other database of your choice.

Refer to our Create Salesforce accts / opps with Slack modal template to learn how to use the information gathered through a Slack modal to perform specific actions in a service of your choice.

Connectors Used
Copy

The following connectors are used in this template. This is provided for reference only - there is no need to read through the linked connector pages, as all you need to know for this template is explained here:

End Result
Copy

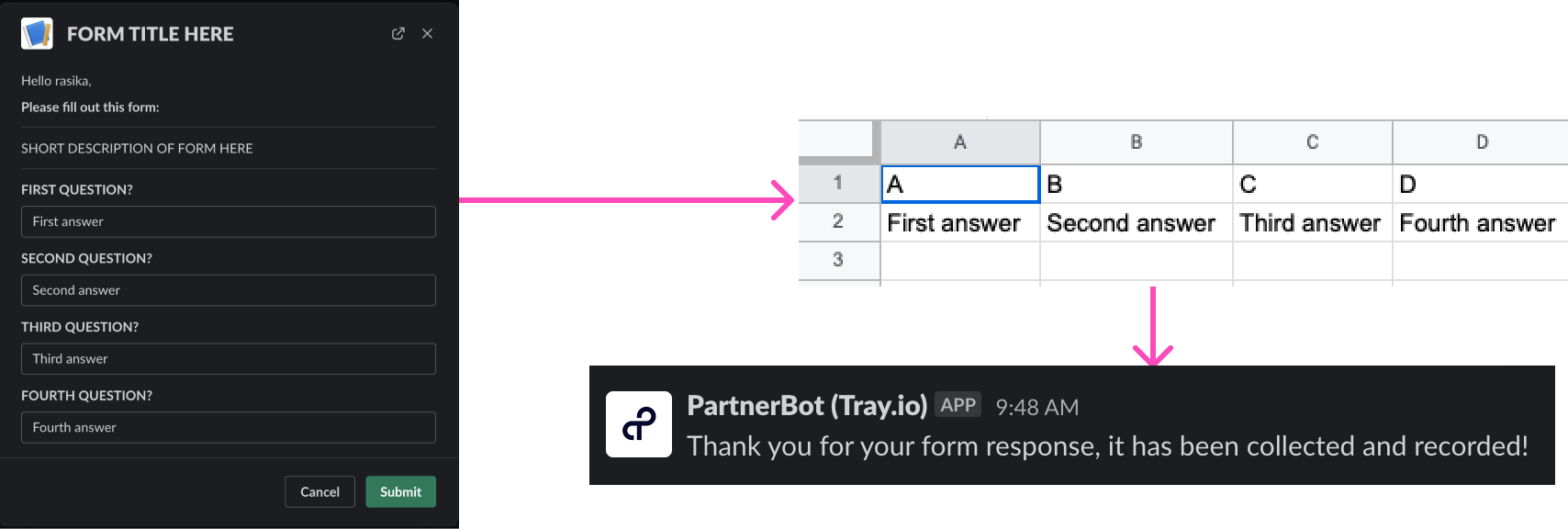

The below image shows the Modal generated using the /slack-slash-command. It also shows the collected records stored in a Google sheets and a final message received on Slack on the Submit action of the Modal/Form.

Prerequisites
Copy

This workflow assumes the following:

  • You have a Slack App created.

  • You have authentications created for Slack and a database of your choice.

Getting Live
Copy

To configure the workflow for your own use:

Workflow Logic
Copy

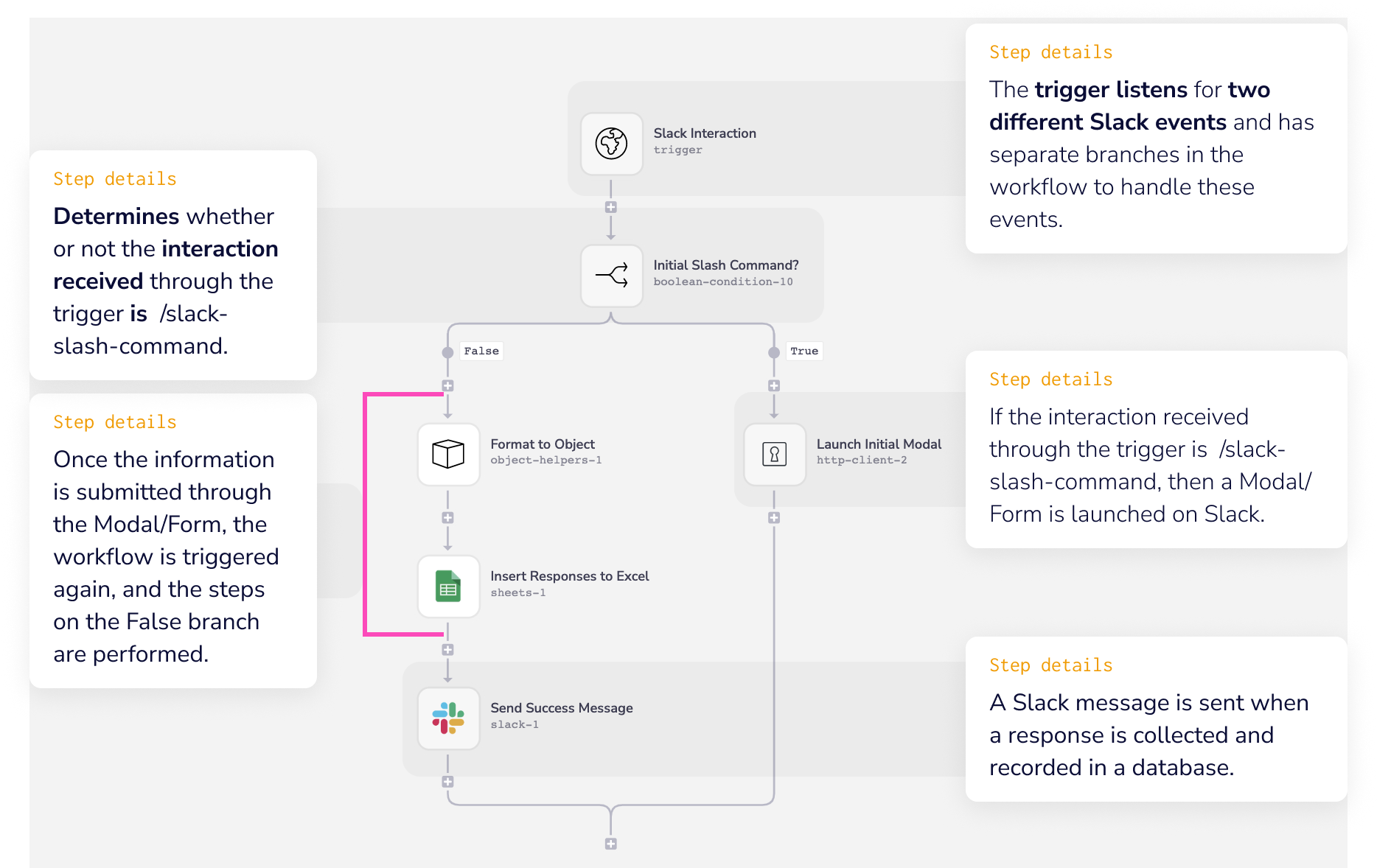

The overall logic of the workflow is:

  1. The workflow is triggered by two different Slack events. A separate branch in the workflow handles each event.

  2. The boolean condition checks which type of interaction triggered the workflow.

    • If the workflow is triggered with the /slack-slash-command, the true branch is executed, and it launches a form/modal on Slack for the user to configure their inputs.

    • Once the inputs are configured and submitted, the submit event triggers the workflow again, and the false branch is executed. The response collected from the form/modal responses can then be stored in any database of your choice. In this template, we are using Google Sheets as a generic placeholder for any other database of your choice.

Step-by-step Explanation
Copy

True Branch
Copy

False Branch
Copy
